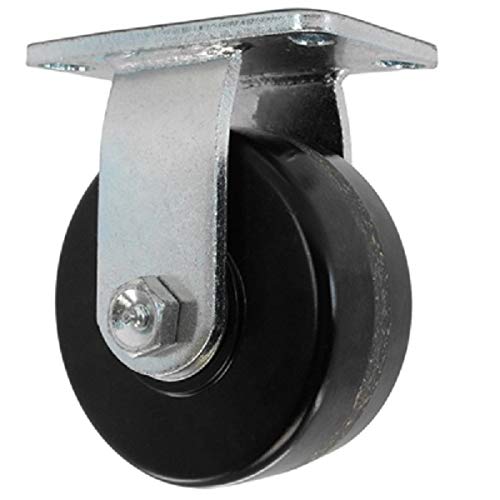

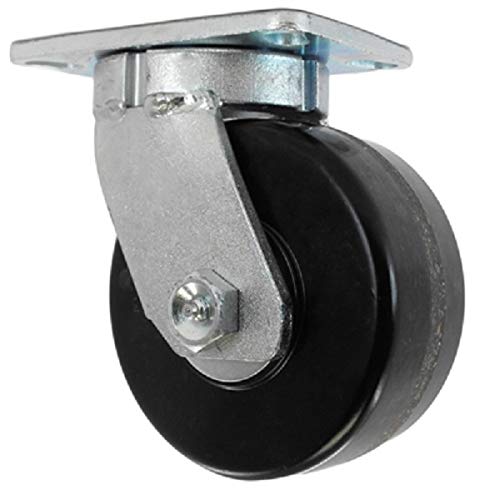

CasterHQ - 10" x 3" Kingpinless Heavy Duty 2 Swivel & 2 Rigid Caster - Phenolic Wheel - 11,600 Lbs Capacity
Product details
| Management number | 211714019 | Release Date | 2026/04/04 | List Price | $128.00 | Model Number | 211714019 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
10" x 3" Kingpinless Heavy Duty 2 Swivel & 2 Rigid Caster - Phenolic Wheel - 11,600 Lbs Capacity Set of 4 Caster Headquarter's 10"x3" Kingpinless Casters are designed for unsurpassed durability and use in abusive and demanding shock load applications that may cause tradional kingpin casters to fail. Th e top plate and inner raceway is a unique one piece construction (stronger than machined and & welded designs); the inner and outer raeways are made from hot forged (ASTM 1045) steel, are precision machined and hardened and are held together by 1/2” hardened (HRC45) steel ball bearings. Th e legs are made from 3/8” steel and are uniformly double welded to the outer raceway, for optimum mobility, strength & stability. Th ese casters will exceed your expectations; not only are they durable and nearly indestructible, they provide a smooth ergonomic swiveling action! Features BRIGHT ZINC PLATING FINISH (EXTRA PROTECTION AGAINST RUST & CORROSION) 5/16" STEEL PLATE SWIVEL: ONE ROW OF 1/2" BALL BEARINGS MOUNTED IN A HEAT TREATED PRECISION MACHINED RACEWAY FORK SPACING: 3-1/2" LEG THICKNESS: 5/16" GREASE FITTINGS: ZERK IN SWIVEL RACEWAY SECTION PSL-NOTCHED: ALL SWIVEL RIGS ARE NOTCHED FOR AN OPTIONAL 4-POSITION SWIVEL LOCK AXLE: 3/4" DIAMETER AXLE WITH LOCK NUT WHEEL MATERIAL: PHENOLIC WHEEL DIAMETER: 10” WHEEL TREAD WIDTH: 3” LOAD CAPACITY: 2,900 LBS /EA TOP PLATE SIZE: 4-1/2” X 6-1/4” BOLT HOLE SPACING: 2-7/16 x 4-15/16 slotted to 3-3/8 x 5-1/4 WHEEL DUROMETER: 90 SHORE D (+/-5) MOUNTING BOLT SIZE: 3/8” OVERALL HEIGHT: 11-1/2” BEARING TYPE: ROLLER BEARING (Other Options Available) WHEEL COLOR: BLACK TEMPERATURE RANGE: -50F – 250F CASTER BRACKET MATERIAL: ZINC PLATED STEEL GREASE ZERK: YES AXLE: ZERK AXLE
- Wheel Diameter: 10" / Tread Width: 3"
- Overall Height: 11-1/2"
- Weight Capacity: 2,900 lbs Per / 11,600 Lbs Set of 4
- Mounting Plate Size: 4-1/2" x 6-1/4"
- Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
| UPC | 733569705955 |
|---|---|
| Color | Black |
| Brand Name | CasterHQ |
| Unit Count | 1.0 Count |
| Caster Type | Swivel |
| Item Weight | 98 Pounds |
| Wheel Width | 2 Inches |
| Manufacturer | CasterHQ |
| Load Capacity | 11600 Pounds |
| Material Type | Phenolic |
| Mounting Type | Plate Mount |
| Surface Recommendation | Multi-Surface |
